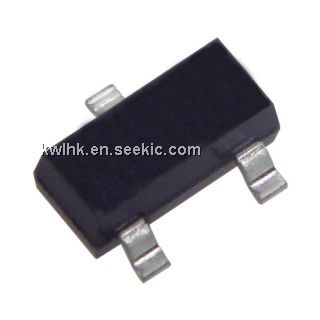

Product Summary
The BZX84-C12 is a low-power voltage regulator diode. It can be used in general regulation functions.
Parametrics
BZX84-C12 absolute maximum ratings: (1)continuous forward current: 200 mA; (2)non-repetitive peak reverse current: -; (3)total power dissipation: 250 mW; (4)non-repetitive peak reverse power dissipation: 40 W; (5)Storage Temperature Range: -65 to +150°C; (6)junction temperature: -65 to +150°C.
Features
BZX84-C12 features: (1)Total power dissipation: max. 250 mW; (2)Three tolerance series: ±1%, ±2% and approx. ±5%; (3)Working voltage range: nom. 2.4 to 75 V (E24 range); (4)Non-repetitive peak reverse power dissipation: max. 40 W.

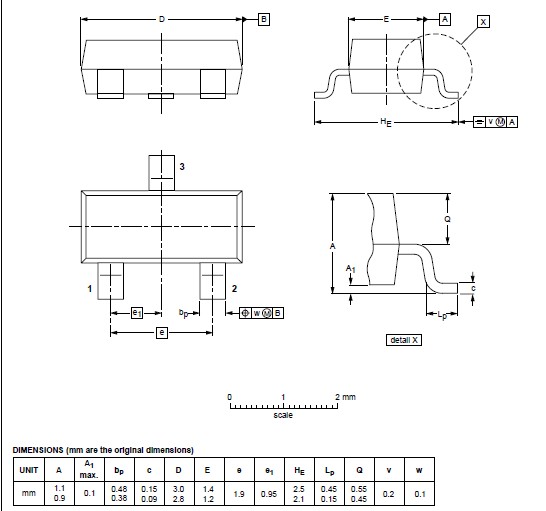

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() BZX84-C12 /T3 |
![]() NXP Semiconductors |
![]() Zener Diodes DIODE ZENER 5 PCT TAPE-11 |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() BZX84-C12,215 |
![]() NXP Semiconductors |
![]() Zener Diodes 250MW 12V 5% |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() BZX84-C12,235 |
![]() NXP Semiconductors |
![]() Zener Diodes DIODE ZENER 5 PCT |
![]() Data Sheet |
![]()
|
|
